Diy

Author

Post

Friscko Friscko is a male

Aron Tinnitus

Registration Date: 12-03-2005
Posts: 4,467

Helpfulness rating:

a mate of mine just built himself a dubsiren, after the sheme you can find on www.interruptor.ch

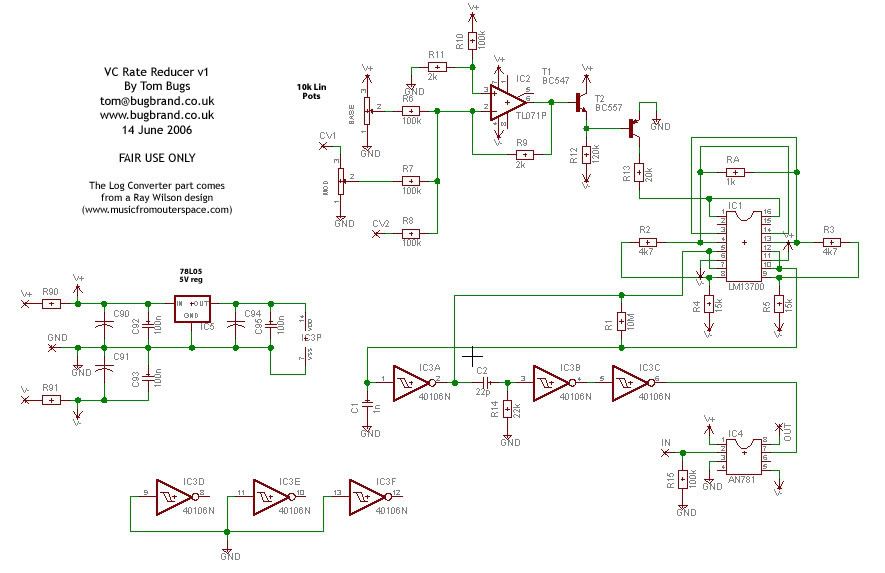

i'm planning to build one myself, but most of all, i'd like to build this bit crusher pedal

(www.bugbrand.co.uk)

anyone else got some experience with diy hardware, or have got plans for other things?

__

www.myspace.com/arontinnitus
www.myspace.com/djfriscko

21-08-2006 21:25

Yawn

Sponsor

Registration Date: 25-01-2005
Posts: 1,185

Helpfulness rating:

I've always wanted to build my own simple hardware synth.

they do self assembly stuff at www.paia.com

I just dont think my electronics skills are up to it

22-08-2006 13:09

djfreemc djfreemc is a male

Sponsor

Registration Date: 25-07-2003
Posts: 1,117

Helpfulness rating:

Once made a mono 5-channel graphic EQ as a lab project in school. It was not of practical use to me, but it worked fine.

__
The mysteries of the distorted snare...
Can't win if u don't play

22-08-2006 19:41

Abnormalbrain Abnormalbrain is a male

Cool Producer

Registration Date: 24-03-2005
Posts: 207

Helpfulness rating:

This sounds pretty cool, thinking about learning it. Does anyone know how to do/learn this? Any websites etc? Any1 have experience of it?

__
--------------------------------------------------
da rollaz, da steppaz da true playaz

This post has been edited 1 time(s), it was last edited by Abnormalbrain: 27-09-2006 16:24.

27-09-2006 16:23

baz

Registration Date: 19-02-2005
Posts: 1,531

Helpfulness rating:

working with reaktor helps clarifying things

__
"shotgun ; slammin in yo chestpiece ; blaw"

27-09-2006 17:31

Abnormalbrain Abnormalbrain is a male

Cool Producer

Registration Date: 24-03-2005
Posts: 207

Helpfulness rating:

I was more thinkin of eq/compressor/micpream rather than synths.

__
--------------------------------------------------
da rollaz, da steppaz da true playaz

27-09-2006 18:08

djfreemc djfreemc is a male

Sponsor

Registration Date: 25-07-2003
Posts: 1,117

Helpfulness rating:

quote:

Originally posted by Abnormalbrain
I was more thinkin of eq/compressor/micpream rather than synths.

EQ is not that hard, you need some variable resistors, some audio quality opamps, and coils or capacitors to create the filters. If you want I can look up the scheme and a good explanation of it (in dutch).

Building a basic mic preamp should also be possible I think. I guess a 2stage amp with one impedance changing amplifier and one "power" amplifier will do the job. Building a studio quality mic preamp on the other hand, would be quiet hard I think.

For a compressor I have no idea, but you will probably be able to find some schemes on google.

__
The mysteries of the distorted snare...
Can't win if u don't play

27-09-2006 19:22

Friscko Friscko is a male

Aron Tinnitus

Registration Date: 12-03-2005
Posts: 4,467

Helpfulness rating:

does anyone know about (simple) shemes for a simple cutoff+resonance lp filter?

__

www.myspace.com/arontinnitus
www.myspace.com/djfriscko

27-09-2006 19:25

djfreemc djfreemc is a male

Sponsor

Registration Date: 25-07-2003
Posts: 1,117

Helpfulness rating:

quote:

Originally posted by Friscko
does anyone know about (simple) shemes for a simple cutoff+resonance lp filter?

The simplicity of hardware filters greatly depends on the sharpness you want it to cut of. If I'm not mistaken a normal first order filter (1 resistor and 1 capacitor) cuts off only 6dB/octave (could be 3, I don't know it by heart anymore). A second order filter cuts off 12 (or is it 6?) dB/octave, and so on. Also you need to keep in mind the characteristics of the filter (some well-known ones are legendre, cauer, and lots more) as it will also have influence in the pass band (on some filters this is the amount of resonance). Don't have any scheme at hand for a frequency-adjustable filter. Gonna do some googlin'.

edit: check this link. nice scheme for hardware parametric EQ. With some changes you could make your lowpass filter I think.

__
The mysteries of the distorted snare...
Can't win if u don't play

This post has been edited 1 time(s), it was last edited by djfreemc: 27-09-2006 19:52.

27-09-2006 19:35
